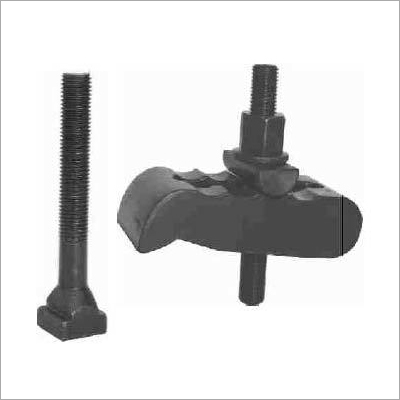

Mould Clamps

Mould Clamps
Mould Clamps
Product Code : 07
Brand Name : GURU NANAK ENTERPRISES
Product Description

Being a prominent Manufacturer, Exporter & Supplier in the industry, we present a wide range of Mould Clamps to our customers. The quality we offer is unmatched. We take special care of quality by testing them against the highest parameters of quality set by the industry. We provide them in safe packaging at affordable rates. We also deliver at your doorstep at your ease owing to our first-rate distribution system.

Features/ Uses

  • Useful for clamping of moulds on plastic injections moulding machines and pressure die casting machines and other low height clampings on presses etc.

  • Front portion of the clamp holds the mould.

  • No spacer packings are required at the rear of the lamp since the body is self positioning.

  • Special swivel washer rests on the curved grooves and the centre distance is easisly set. Flange nut is tightened on the special washer.

  • Supplied complete with Studes/ T-bolts/Swivel washer, Flange nut.



Graph

Graph

For Plastic Injection Moulding & Pressure Die Casting Machine With Clamping Stud & Flanged Nut

Item Code Model Stud Clamping Range Clamp Size
10210 PMC-12S PCSB 12 100 0-35 115 x 50
10202 PMC-16S PCSB 16 125 0-40 135 x 60
10203 PMC-20S PCSB 20 175 0-50 160 x 70

With -Bolt & Flanged Nut

Item Code Model T-Slot Size T-Bolt Clamping Range B Clamp Size
10211 PMC-12T 12 PTB 12 12 100 0-35 110x50
10213 PMC-12T 12 PTB 12 14 100 0-35 110X50
10213 PMC-16T 16 PTB 16 16 130 0-40 135x60
10214 PMC-18T 18 PTB 16 18 130 0-40 135x60
10215 PMC-20T 20 PTB 20 20 150 0-50 160x70
10216 PMC-22T 22 PTB 20 22 150 0-50 160x70
10217 PMC-24T 24 PTB 24 24 210 0-60 180x80
10218 PMC-28T 28 PTB 24 28 210 0-60 180x80
