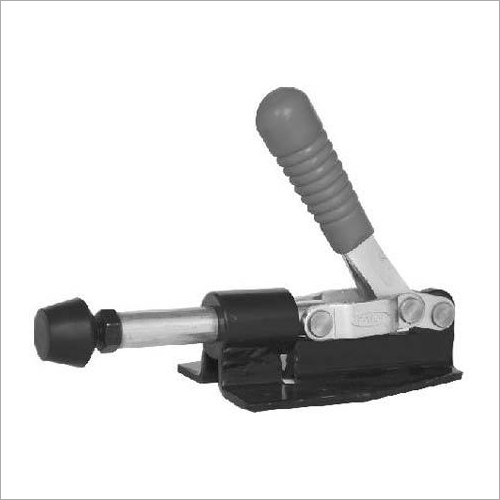

Front Base Push Pull Action Toggle Clamp

Front Base Push Pull Action Toggle Clamp
Front Base Push Pull Action Toggle Clamp
Product Code : 28
Brand Name : GURU NANAK ENTERPRISES
Product Description

Front Base Push Pull Action Toggle Clamp has in a straight line action with forward and backwards movement with a handle that is easy to operate. When handle is moved forward, the plunger moves forward as well and locks. When handle is moved backward, the plunger locks in retracted position. Hence it is used as both push and pull clamps. Hardened and ground plunger moves in precision machined bore. Its rigidity makes it popular for mounting base being just under the load bearing surface of plunger movement.



Specification

Item Code Models Plunger Ø A Plunger Travel Mounting Base J Max. L Holding Capacity
C D E F M N ØG
12901 PHTC 12-FB 12 M-8x1.25 26 30 62 45 45 23 10 11 6.8Ø 34 100 600 Kg
12902 PHTC 16-FB 16 M-10x1.5 30 36 80 56 60 28 12.5 14 8.5Ø 40 125 1000 Kg
12903 PHTC 20-FB 20 M-12x1.75 38 44 110 70 70 35 17.5 17.5 10.5Ø 48 150 1500 Kg
